14,000 lb. Brake Axle Trailer Kit (One Trailer Axle with Brakes)

14,000 lb. Brake Axle Trailer Kit (One Trailer Axle with Brakes)

Free  FedEx  Ground Shipping and Volume Pricing
You have selected the tandem 14,000 lb. kit, one axle with electric brakes, sixteen inch ST23580R16E OEM steel wheels and tires, a 2 5/16" ball a-frame RAM heavy duty coupler, with RAM a-frame jack.  We have many different lengths of axles for your trailer.  We ask that you provide your desired outside frame width when placing your order.  Below is a complete bill of materials for the trailer kit you have selected.

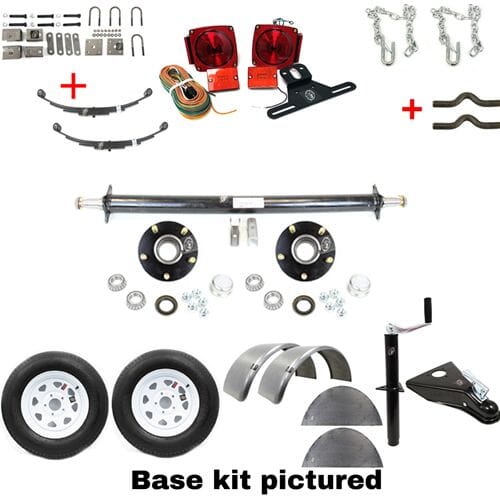

Bill of materials for selected tandem 14,000 lb. trailer kit:

  • (1) 7,000 lb. trailer axles with idler hubs (Some assembly required)

  • (1) 7,000 lb. trailer axles with electric brakes (Some assembly required)

  • (4) Six leaf slipper leaf springs 28" long

  • (2) 3" round u-bolt kit for 7,000 lb. axle including u-bolts, nuts, and plates

  • (1) Tandem hanger kit for 7,000 lb. axle including hangers, shackle bolts and nuts, shackle straps, and equalizers

  • (4) Sixteen inch ST23580R16E 3500# Capacity white spoke steel wheel and tire

  • (1) LED Trailer light kit including tail lights, clearance lights, license plate bracket, and wire with connection with electrical for brakes

  • (1) RAM 2 5/16" 15,000 lb. a-frame coupler

  • (1) RAM a-frame jack

  • (1) Safety chain

  • (1) 7 way trailer end connector

  • (50) 7 Way trailer cable

  • (1) Breakaway kit with charger

  • (50) 18"x2" reflective conspicuity tape strips

Part Number: INTKITTNDM7001 | Total weight: 900 lb.

This product qualifies for quantity discount pricing on the base price.
Quantity Discount% Discounted Base Price
2-4 3% $2,792.62
5-9 6% $2,706.25
10-50 9% $2,619.88
The outside frame width will help us select the correct axle.
Please Specify Your Outside Frame Width
  • Straight Axles
